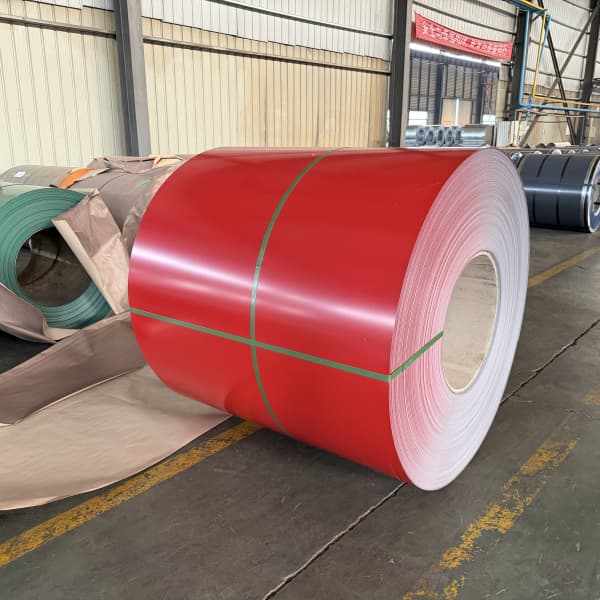

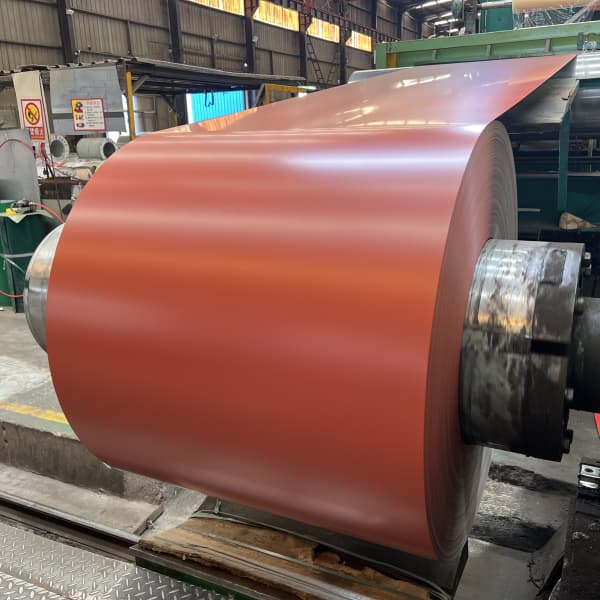

Direct factory wholesale prepainted galvanized steel coil (PPGI) engineered for heavy-duty industrial roll-forming and architectural cladding panels.
Manufactured by the dedicated export arm of Winroad Group in the port city of Tianjin, our color coated coils deliver unmatched paint adhesion flexibility, a customizable thickness profile from 0.085mm to 1.4mm, and complete international RAL color customization.
We utilize premier paint chemistries including AkzoNobel and Nippon to confidently provide advanced UV-fading resistance and reliable outdoor mechanical longevity. Full MTC documentation provided; 100% supports independent third-party inspection (SGS/BV/Intertek).
Operating as a premier direct-source steel industrial manufacturer and the specialized cross-border export entity of Winroad Group, we run state-of-the-art automated color coating lines engineered to deliver elite-level prepainted galvanized steel coil (PPGI) solutions for global construction contractors, profiling factories, sandwich panel manufacturers, and industrial metal distributors. Strategically anchored within our heavy industrial facilities in the port city of Tianjin since 1994, our integrated manufacturing infrastructure controls the complete downstream cycle—ranging from baseline cold rolling and continuous hot-dip zinc galvanizing to multi-stage liquid paint application and high-temperature precision baking ovens. This rigorous internal process completely bypasses third-party metal brokerage markups, confidently passing maximum cost efficiencies down to our global B2B procurement partners through competitive mill-direct corporate pricing.
### COMPREHENSIVE PRODUCT SPECIFICATIONS
To guarantee absolute synchronization with your automated processing lines and high-speed roll-forming machinery, our commercial prepainted galvanized steel coil catalog adheres strictly to international metal manufacturing tolerances (ASTM A653, EN 10346, and JIS G3312 benchmarks):
* Material Substrate: Hot-Dipped Galvanized Steel Matrix (Commercial or Structural Grades)
* Production Thickness Capability: 0.085 MM to 1.4 MM (Strict Micro-Tolerance Calibration)
* Processing Width Spectrum: 900 MM to 1250 MM (Precision Narrow Strip Slitting Available)
* Substrate Zinc Mass Weight: Z10 to Z275 g/m² (Optimized for High Atmospheric Corrosion Areas)
* Top Surface Coating Architecture: 5 to 35 Microns (μm) Multi-Layer Liquid Primer & Topcoat
* Reverse Side Protective Layer: 5 to 20 Microns (μm) High-Adhesion Anti-Corrosive Coating
* Architectural Finish Matching: 100% Full International RAL Color Catalog System
* Paint Chemistry Specializations: Regular Polyester (PE), Silicone Modified Polyester (SMP), High Durability Polyester (HDP), and Premium Polyvinylidene Fluoride (PVDF)
* Strategic Paint Group Suppliers: AkzoNobel, Nippon Paint (Advanced Anti-Chalking Formulations)
* Internal Bundle Diameter: 508 MM / 610 MM
ADVANCED MATERIAL FLEXIBILITY & DOWNSTREAM APPLICATION
Our premium prepainted galvanized steel coil configurations are formulated to possess exceptional mechanical ductility and profound coating elasticity parameters. The automated liquid chemical coating layers undergo rigorous continuous thermal cross-linking treatments, which creates an unbreakable metallurgical bond between the protective paint and the hot-dip zinc-coated steel core. This ensures that the outer protective shell maintains superior flexibility and anti-chipping performance even under extreme heavy-duty compression, high-speed profile roll-forming, zero-radius T-bend shaping, or intense deep-stamping fabrication. Consequently, our PPGI coils are heavily relied upon worldwide for manufacturing high-end corrugated roofing sheets, structural wall cladding, commercial warehouse doors, and premium steel framing components exposed to hostile climates.
TRANSPARENT B2B SUPPLY CHAIN SECURITY & SHIPPING LOGISTICS
Backed by over three decades of manufacturing pedigree and successful exports spanning 78 countries and regions, we maintain zero-tolerance inspection protocols. Every single production batch is systematically audited inside our industrial laboratories and fully verified via traceable Mill Test Certificates (MTC). To eliminate procurement risks and provide ultimate corporate transparency for our cross-border partners, we completely support pre-shipment quality evaluations executed by globally trusted independent checking companies, including SGS, Bureau Veritas (BV), and Intertek. Each color coated steel coil is heavily encased in our sea-worthy packaging protection framework—incorporating thick waterproof vapor barriers, multi-layer rust-inhibiting wrappers, reinforced metallic radial edge shields, and robust steel tie-down bands—to ensure rust-free, pristine, production-ready arrival at your warehouse docks. Contact our expert engineering sales group today to submit your monthly RFQ schedules or request physical material samples.
